Automatic Labelling Machine

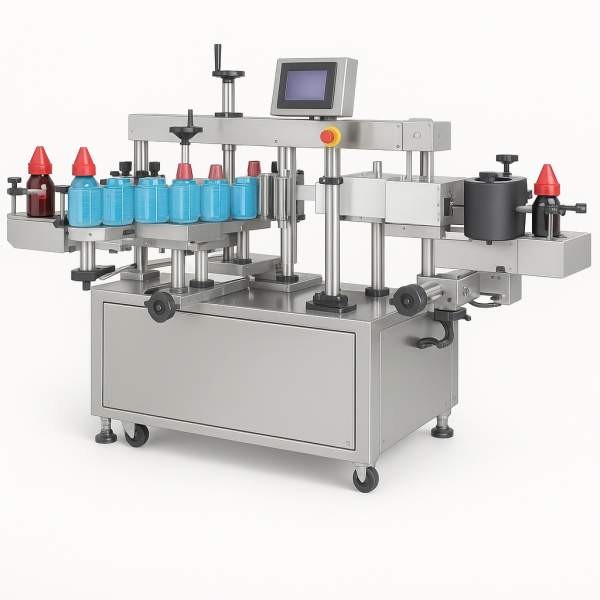

Automatic bottle labeling machine with dual labeling heads, touch-screen control, and optional wrap-around module.
- Description
- Additional information
Description
An advanced labeling solution with high-speed capabilities, designed for applying labels on various bottle types. Dual labeling heads allow simultaneous labeling on both sides of the bottle, while a touch-screen control panel ensures efficient operation and easy setup. This fully automated system is also available with an optional wrap-around module for those seeking additional functionality.
Additional information
| Model | LI-SL 2H |
|---|---|
| Label Height | 75mm to 200 mm Standard |
| Label Length | 100 mm Minimum |
| Label Roll Dia | 400 mm |
| Core Dia | 75/76 mm |
| Gap Between two Labels | Appx. 3 mm |
| Product Diameter | 15 mm to 150 mm |
| Product Width & Height | Width 25-150m Height 25-200 |
| Electrical | 220 VAC Single Phase Power Supply (50/60 Hz) |
| Power | 1.5 Amp |
| Capacity | 0.75 Kw |
| Speed | Up to 20-25 Labels per minute depending on Product and Label Size |
| Conveyor height | 830-875 mm |
| Overall Dimension | 1750 mm(L) X 870 mm(W) X 1100 mm (H) |
| Machine Direction of Movement | Left to Right from operator side |
