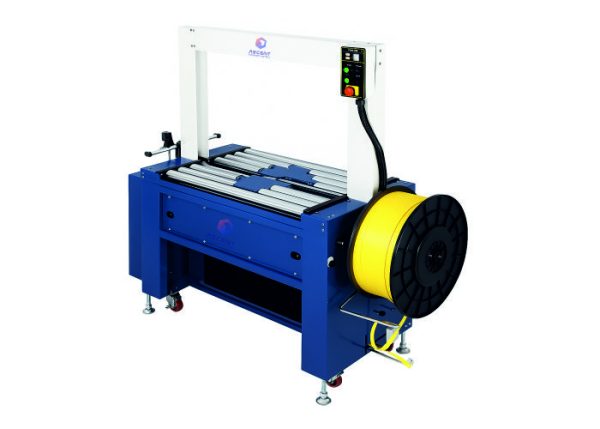

Fully Automatic Strapping Machine JPM93R
High-speed automatic strapping machine designed for in-line use, supporting 9–15 mm straps, with 15–100 kg tension and 24 cycles/min output. Suitable for various packaging lines with customizable features.
- Description
- Additional information
- Features
- Options
Description
This fully automatic strapping machine is ideal for in-line integration with other packaging systems across general industries. It supports multiple arch size combinations and accommodates strap widths ranging from 9 mm to 15 mm, making it suitable for a wide variety of packaging needs. The machine delivers adjustable tension from 15 to 100 kg and operates at a high cycle speed of up to 24 straps per minute. Additionally, it can be customized with advanced functional options for enhanced performance and efficiency.
Additional information
| Model | JPM93R |
|---|---|
| Speed (straps/min) | 24 |
| Strap Width (mm) | 9/12/15 specified |
| Tension Range | 15~70 kgs |
| Standard Arch (W x H mm) | 850 x 600 AC |
| Roller speed (m/min) | 10~40 Adjustable |
| Sealing Method | Healing Element |
| Table Height (mm) | 805 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH |
| Power Consumption (kw) | 1.0 KW |
| Layout Dim(L x W x H) | 1400 x 600 x 1530 |
- Proximity cam switch
- Instant heating system
- Hinged belt driven table top
- Weld cooling time adjustable
- Digital PCB with LED which easy to regulated
- Looping ejector
- Auto loading system
- Stack lights with buzzer
- Coil end strap ejecting out
