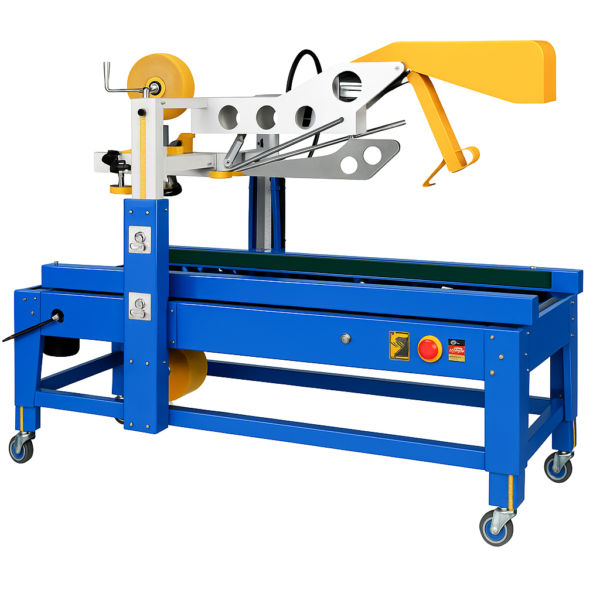

Heavy Duty Random Carton Sealer & Auto Flap Folding
Auto flap folding and self-adjusting dimensions for fast, efficient box sealing ideal for integration with automated packaging systems.
- Description
- Additional information
- Features
- Option
Description
The automatic top flap folding feature enhances efficiency and simplifies the box sealing process. The machine automatically adjusts its width and height to accommodate a variety of box sizes. Reliable taping heads ensure smooth and consistent tape application. This system can also be seamlessly integrated into an automated packaging line.
Additional information
| Sealing Size | Max. 500 x 500 x 500 |
|---|---|
| Tape Width | 2” or 3” (specified) |
| Table Height (mm) | 570~700 |
| Belt Speed | 20 M/per min. at 60Hz |
| Air Consumption | 6 kgs/cm2 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH |
| Layout Dimension | 1985 x 950 x 1625 |
- Top flaps folding device
- For random box
- Side belt driven
- Sturdy mast & frame
- Taping heads seal box smooth & accurate
- Table height adjustable from 570~770 mm
- Safety fence
- Stainless steel housing #304
- Detect for tape cutting failure, low & no tape roll
