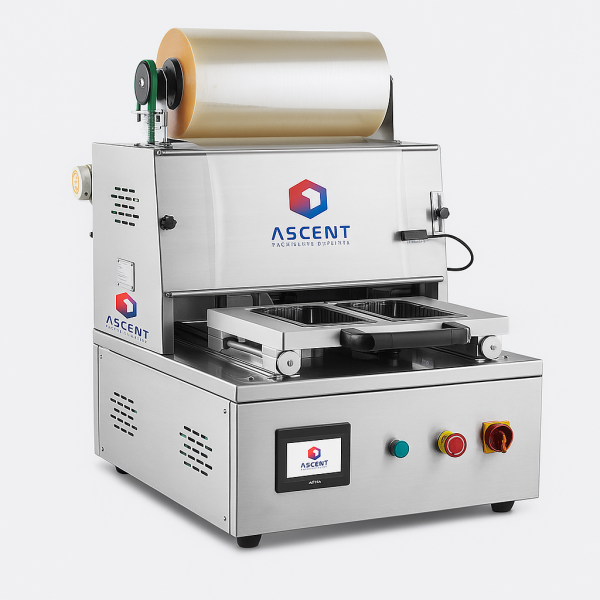

Modified Atmosphere Packaging (MAP) Table-Type Machine
Compact and high-performance MAP table-type machine designed to extend shelf life and preserve product quality—ideal for sweets, fresh produce, and ready-to-cook food packaging.
- Description
- Additional information
- Features
- Applications
Description
The MAP table-type machine is widely utilized across a diverse range of industries including sweets (mithai), vegetables, fruits, cooked meals, dairy products, poultry, seafood, and meat. This advanced packaging solution significantly extends product shelf life while maintaining optimal freshness, color, shape, and taste.
Engineered for efficiency, the compact design ensures minimal space usage without compromising on performance. Its robust operation and versatility make it especially preferred in the mithai industry and for ready-to-cook or ready-to-eat food applications.
Additional information
| Model | MAP 400L-V (Floor Model) |
|---|---|
| Maximum width of roll film | 390 mm |
| Maximum diameter of roll film | 220 mm |
| Power | 4.5 Kw, 440V, Three Phase |
| Vacuum Pump Capacity | 60 m3 |
| Air Pressure | 10-15 Bar |
| Speed | Upto 6 Cycle (depends upon Vacuum, gas injection and products) |
| Maximum size of Two Cavity | 300x210x70 |
| Maximum size of 4 Cavity Trays | 190x140x70 |
| Maximum size of 8 Cavity Trays | 140x100x70 |
| Film Required | Mini 50 Micron |
| Film Rolls weight | 10-15 kg |
| Output of Two Cavity Tray /Hr | 500-600 |
| Output of 4 Trays /Hr | 1000-1200 |
| Output of 8 Trays /Hr | 2400-2500 |
| Equipment weight | 300 kg |
| Equipment size LxWxH | 720×900×750 in mm |
- This machine comes with one set of Mold and extra Mold can be provided with additional cost.
- Safety and sliding mold design, and easy changeover without tools.
- Real-time fault indication, enable quick adjustment and after-sales service.
- Stainless steel 304 and anti-corrosive aluminum construction.
- Teflon coated sealing plate, easy maintenance if film melt and sticked.
- Sealing temp/time, film and other parameters can be easily adjusted on touch screen controller.
- 100 programs can be set
- Precise measurement of critical vacuum & Gas injection Parameters with Pressure sensor
- Easy to operate, and neat profile cutting and sealing of film, motor drive.
- Precise and automatic film feeding with photoelectric and disc sensors.
- Film automatic winding & unwinding systems
- Safe and hygienic, CE certification.
- Mobile with 4 x lockable castors.
- Safety and sliding mold design, and easy changeover without tools.
- Supply training video and after-sales service online with quick response.
- Voltage/plug type can be customized as required.
- WITT gas mixer optional.
- Package material: trays made from barrier bio Degradable pulp box/ PP / PET, and we could supply tray + film according to your size and print if needed.
- Mithai/Sweets Packaging – retains freshness, taste, and shape
- Ready-to-cook & ready-to-eat meals – enhances shelf life and food appeal
- Vegetables & fruits – prevents spoilage and color loss
- Poultry & meat products – maintains hygiene and extends usability
- Seafood & fish – preserves texture and reduces oxidation
- Dairy items – prolongs shelf life while keeping natural flavor
- Cooked food packaging – ideal for restaurant deliveries and food chains
- Retail packaging – ensures safe and clean presentation of perishable goods
