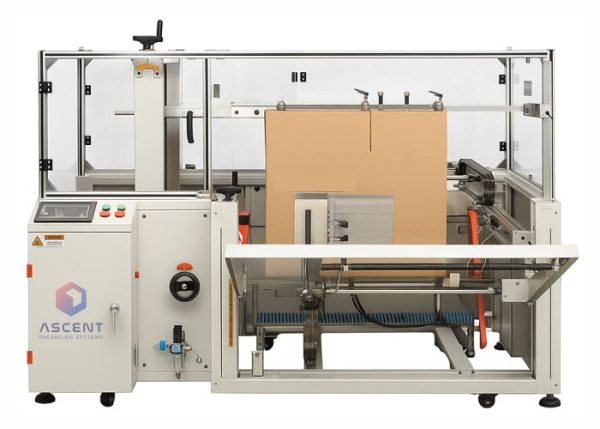

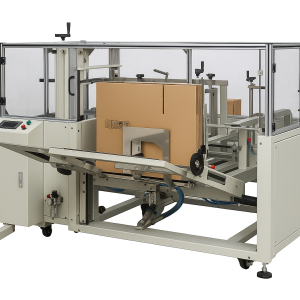

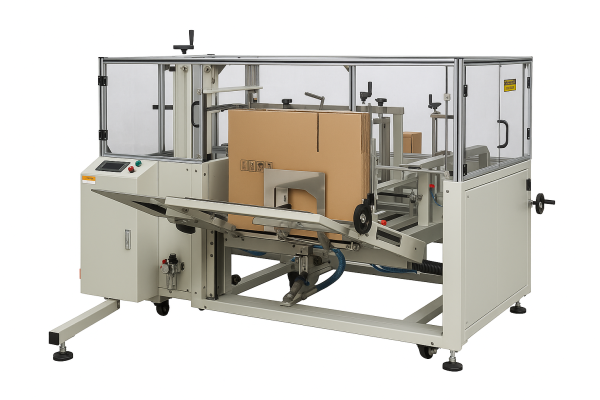

Automatic Case Erectors
High-speed automatic case erector with vacuum carton opening, flap folding, and tape sealing—ideal for multi-size packaging in diverse industries.
- Description
- Additional information
- Features
- Applications
Description
Automatic case erectors are designed to efficiently form and erect corrugated cardboard boxes, widely used across industries such as food, beverages, pharmaceuticals, electronics, and logistics to enhance packaging productivity.
Option Customization :
a) Voltage.
b) Machine hull material and color.
c) Tape width.
d) Suitable carton size.
Additional information
| Voltage/Power | AC 220V/50Hz 380V/50Hz (3PH) / 380 W |
|---|---|
| Max. Packing Size | 450 x400x400(LxWxH) (mm) |
| Min. Packing Size | 250x150x150(LxWxH) (mm) |
| Height of Table | 630-650 mm |
| Width of Tape | 60,48 mm |
| Capacity | 8-10 Carton/min |
| Machine Weight | 430 Kg |
| Air Compressor | 0.5-0.6 Mpa |
| Suitable Type | BOPP, PVC, Water-free adhesive tape |
- Fully automatic carton erecting, forming, bottom flap folding, and tape sealing
- Vacuum suction for precise carton opening
- Alarm system for missing tape or cartons
- Easy adjustment for varying carton sizes
- High price exceed the budget.
- Expensive freight charge caused by big volume.
- Complex adjustment require professional operators.
- Employee refuse multiple maintenance and debugging.
